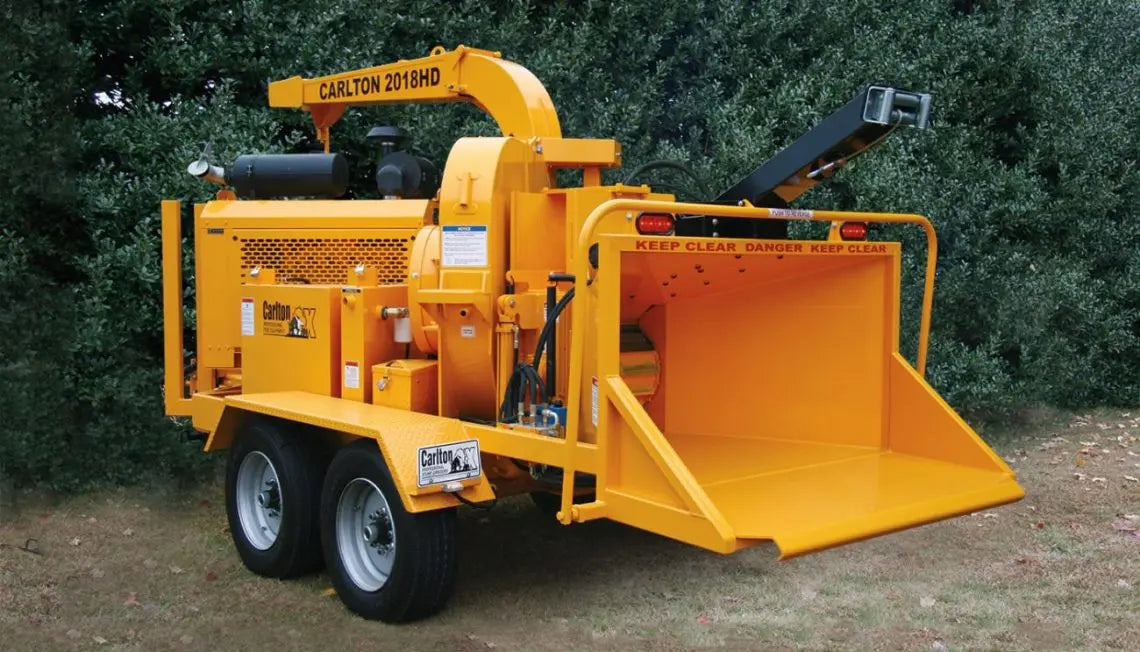

Carlton 2018 (18" Disk Chipper)
Carlton 2018 (18" Disk Chipper)

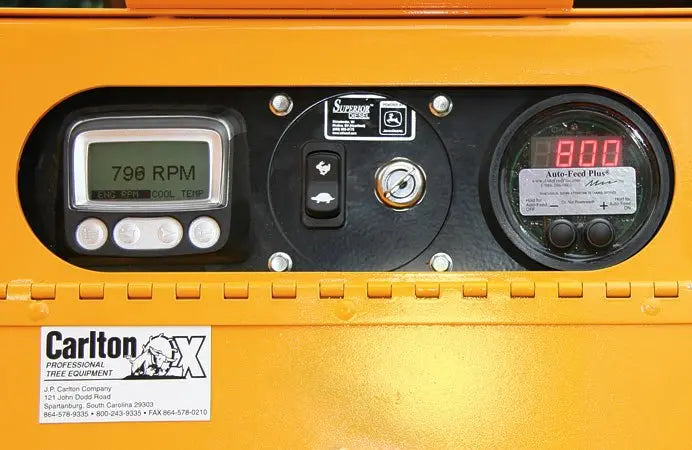

This Chipper is designed and built to stand up in the toughest applications, able to withstand all the punishment you and your crew can dish out. From its high capacity axles and tires, to its heavy-duty frame, back to the rigid 3/8″ feed table, the 2018HD is built right. J.P. Carlton understands the environment the 2018HD must survive in everyday. Thoughtful design elements like concealed wiring, integrated single manifold hydraulics with electronic control, dual lift cylinders, full – length radiator protection guards keep the 2018HD operating at peak performance year after year. For Durability and Dependability nothing compares to J.P. Carlton.
The 2018HD wood chipper is an extremely versatile high production machine. The 2018HD is built to stand the day in day out duty of clearing or producing fuel chips while still being operator friendly. The J.P. Carlton 2018HD is at home behind an arborist truck or out in the woods with a clearing crew!! The super high torque feed system unique to the 2018HD provides the most pulling power available on an 18″ capacity chipper. This high torque feed system combined with the high horsepower diesel engine options and proprietary chipping system make the 2018HD chip like no other high capacity machine on the market. This chipping system gives a consistent high quality dimensional chip. The 2018HD is able to take the largest logs and discharge them to the front of 53′ trucks with ease – No plugging this chipper!!! The combination of an excellent chip quality and high rate discharge pack chip boxes tight, getting the best reduction ratio on the market.
- Led Taillights mounted high on the infeed out of harms way. The 2018HD’s taillights have heavy duty covers for extra protection. All the wiring runs inside the frame to give the machine a neater appearance and keep wires clear of damage.
- Hydraulic Swivel Discharge quickly and easily allows the operator to fill the largest capacity chip trucks corner to corner, or direct the chips to a precise place on the lot.
- Hand Crank Height Adjustable Discharge Chute allows the operator to quickly adjust the discharge perfectly for any truck.

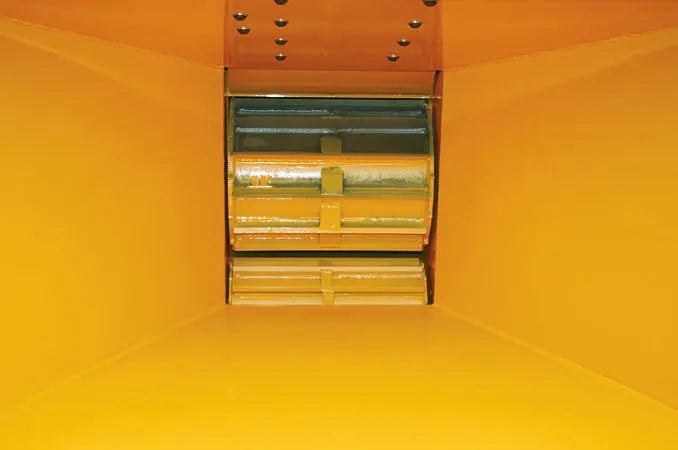

- Massive 20″ x 18″ Throat Opening is the largest in its class and easily handles the most difficult materials.
Rigid 3/8″ Feed Table resists bending under the day to day stresses of chipping the largest logs. This heavy duty feed table is framed in tubing for even more added strength!
- Heavy Duty 1 1/2″ Feeder Bar

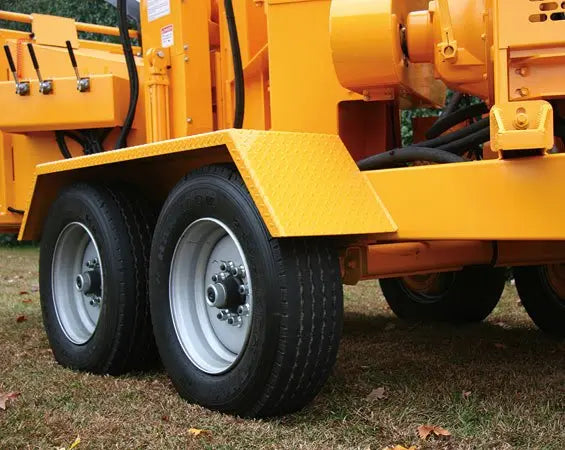

Four 235/75R17.5 6000 Pound Capacity Tires easily carry the load.
64″ Wide Infeed Chute takes the big tops and requires less trimming by the crew!
- Hydraulic Planetary Winch with 2 speeds and freewheel provides 10,000 pounds of pulling power

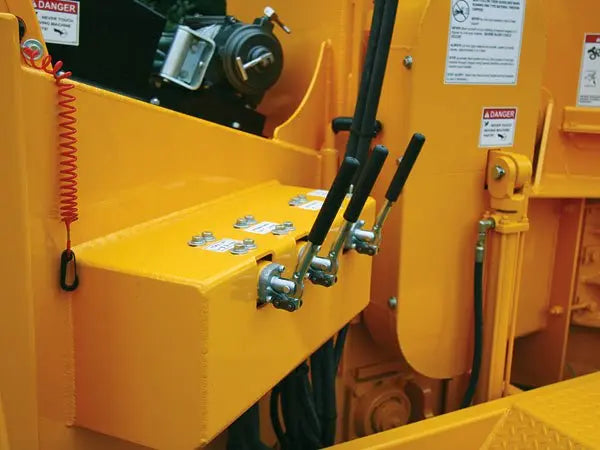

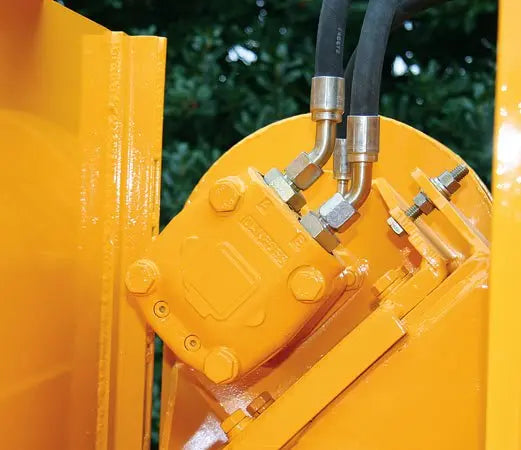

- Tandem Hydraulic System provides power independently to each feed wheel. This system ensures the most power at all times to the feed system. By running this system directly off the engine all hydraulic functions are available without engaging the disk.
- Locking Fuel and Hydraulic Tanks sit down in the frame for maximum capacity and a clean design.
- Heavy Duty 10,000 pound tongue jack.
|235/75R17.5 Ld Rng H 6005 # @125 PSI
|Two Dexter Torflex 8,000 Pound Cap
|Electric Both Axles w/Breakaway Switch
|9″ Height Adjustable Pintle
|10000 # Cap Screw Type
|John Deere 6068T Turbo Diesel
|Number of Cylinders
|4.19 Inches (106 mm)
|5.0 Inches (127 mm)
|414 Cubic Inches (6.8L)
|358 Ft Lbs (485 NM)
|Liquid Water/Antifreeze Mixture
|Two Stage Dry Type
|Full Flow Spin On
|Murphy Power View w/ Shutdowns
|Twin Disk 11 1/2 ” Over Center
